Mega Equipment Trailer

Equipment Trailers

Genuine Mega Design for
Equipment Trailers (MET)

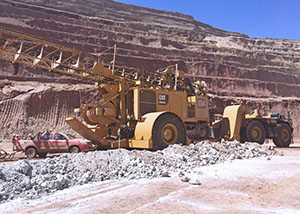

Mega equipment trailers are designed for use with off-highway trucks converted into tow tractors. The complete Mega solution includes the hitch system, and modifications to the chassis hydraulic, electrical, braking and computer control systems. Mega trailers are designed to comply with OEM tire and tractor axle load limits and meet applicable ROPS, emergency steering, and braking performance criteria. Our design maximizes the use of OEM content in the design of the trailer, and wheel and brake system components. Mega equipment trailers are designed for use with customer-specific track equipment and are customized to individual mine operation performance requirements.

Mega offers two loading configurations. The MET-RL is a non-detachable gooseneck type low-bed trailer designed for rear loading of mining equipment. The MET-DG is a low-bed trailer featuring a detachable gooseneck to facilitate front loading of mining equipment.

Mega equipment trailers can be purchased for integration with a dealer-provided truck or as a complete solution with a Mega-provided truck. Purchasing your complete solution directly from Mega streamlines the ordering process and significantly reduces the complexities related to delivery timing and shipping.

Please contact our Mega Sales Team regarding shipping information and models not listed.

Mega Model Prime Mover
MET-RL CAT 777
MET-RL CAT 785
MET-RL CAT 789
MET-DG CAT 785

MET tanks include the following standard features. Specifications may vary by model and application. For additional information, contact our Mega Sales Team.

The Mega ball-type hitch assembly is durable and easy to maintain.

Storage boxes are provided for equipment tie-down chains.

Mega's conversion to tow capability for rear load trailers provides:

  • Brake cooling activation and integration
  • Brake cooling scavenge pump
  • Brake activation sequencing
  • Trailer accumulators and slack adjusters
  • All tractor and trailer brake activation hosing and electrical circuitry

Mega's conversion to tow capability for detachable gooseneck trailers provides:

  • Brake cooling activation and integration
  • Brake activation sequencing
  • Trailer accumulators and slack adjusters
  • All tractor and trailer brake activation hosing and electrical circuitry

Lights and amber warning beacons are mounted on the top of the gooseneck to illuminate the deck area.

A detachable gooseneck is the standard configuration for front-load trailers. This configuration does not require hydraulic ramps or berms to load tracked equipment. This design minimizes electrical and hydraulic connections across the trailer gooseneck.

The electronic turn limit indicator provides an audible and visual warning to the operator if the trailer is approaching the maximum angle of rotation.

Steel plate markers welded on each side of the trailer to indicate optimal loading area.

Tie-down anchor points are mounted around the perimeter of the trailer.

Mega tanks are abrasive blasted prior to application of anti-corrosive primer. The exterior top coat is color matched to the current manufacturers color.

The fully integrated solution includes a Mega-provided Caterpillar truck with wheel and brake group. This package is only available to Caterpillar dealers. Integration includes installation of the hitch, deck and fender, as well as the brake activation and cooling circuitry. All connections between the tractor and trailer are completed at the final point of assembly. Final field assembly and testing is completed by dealer service technicians with Mega-provided on-site technical assistance.

The hitch deck and fender arrangement is required to convert the chassis to a tow tractor. The hinged doors provide access to chassis componentry.

Mega's self-contained brake cooling, activation and warning package for wet disc brakes. The system is fully automatic and integrated with the chassis brake control monitoring and warning systems. For detachable goosenecks only.

Mega equipment trailers include LED lights for long life and low maintenance:

  • Stop, turn, tail, backup lights
  • Side marker lights
  • Gooseneck light bar
  • Rear trailer work lights
  • Side backup light
  • Backup alarm

Manual lubrication points are provided for the hitch assembly.

Mega mud flaps are installed fore and aft of the tractor drive tires.

Mega protects your investment by providing a one-year warranty against defects in materials and workmanship. Extended warranties are available for purchase. Visit our Warranty Page for more information.

Mega provides a trailer weldment and hitch package built to customer specifications designed to utilize the maximum towing capacity of the customer provided chassis. The final integrator assumes all responsibility for ROPS certification for the tow vehicle. The dealer also assumes all responsibility for meeting any required brake testing and certifications. Final integration of the trailer with the tow vehicle is the customer's responsibility.

Mega equipment trailers include a complete set of technical manuals detailing installation, operation, maintenance, inspection and replacement parts. Additional manuals are available for purchase. Visit our Technical Manuals Page for more information.

Mega provides an access ladder to the deck of the trailer.

Mega trailers include premium hardwood decking.

Your standard MET can be configured with these optional features. Availability and specifications may vary by model. For additional information contact our Mega Sales Team.

The rear access ladder package includes ladder and handrails.

Additional sets of manuals are available for purchase. Mega equipment trailers include a complete set of technical manuals detailing installation, operation, maintenance, inspection and replacement parts. Visit our Technical Manuals Page for more information.

The auto-lube grease system provides lines from the lubrication banks to the gooseneck. It integrates the manual lube points with the tractor auto lubrication system.

Mega offers hydraulically-operated loading ramps with safety uplocks to facilitate loading. Operator controls are located at the rear of the trailer.

The mechanical turn limit indicator provides a visual warning to the operator if the trailer is approaching the maximum angle of rotation.

The Mega Product Support team offers on-site technical assistance, service advice and training to facilitate implementation and help reduce field assembly and component repair time.

Mega offers trailer axle fenders in combination with safety rails on each side of the trailer to protect wheel group tires from damage.
