Mega Portable Tanks

Genuine Mega Design for Portable Tanks (MPT)

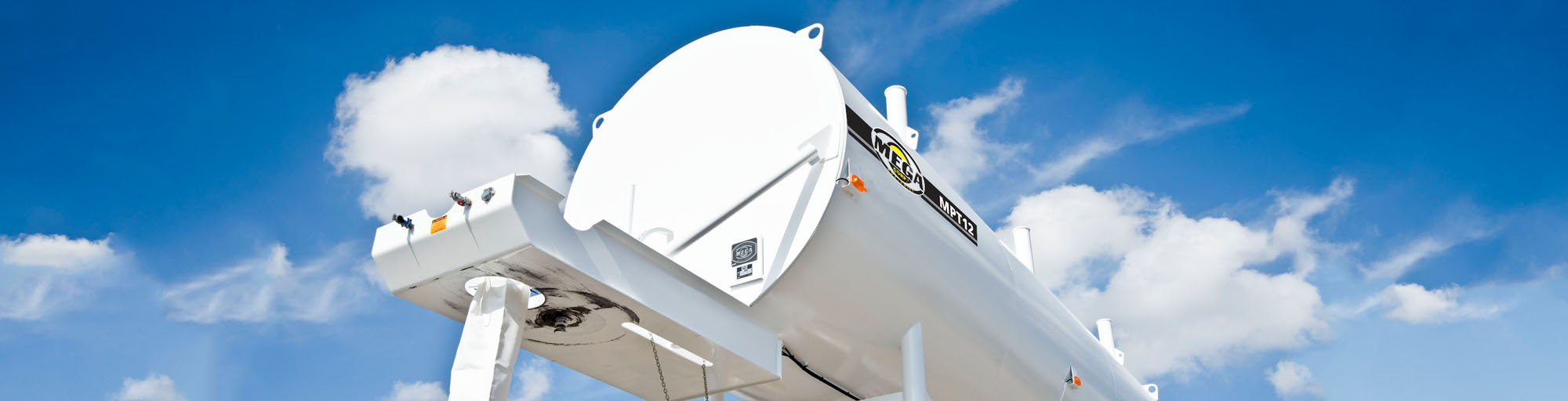

The Mega portable tank is designed for towing with a fifth-wheel hitch. The MPT is a necessary piece of support equipment designed to rapidly fill a variety of water distribution equipment. To maximize the productivity of your operations, the MPT uses an engine driven hydraulic pump and hoist cylinders to lift the tank for maximum height clearance. Our portable tank has a 10-inch diameter discharge pipe that can deliver up to 2,000 gpm. The MPT complies with DOT requirements and comes standard with white exterior paint. Other paint color options are available as well as custom logos.

Our tank includes a complete set of technical manuals detailing operation, maintenance, inspection and replacement parts. Mega tanks are constructed with premium materials and are inspected throughout the manufacturing process to produce the best portable tanks available.

Please contact our Mega Sales Team regarding shipping information and models not listed.

Mega Model Nominal Capacity
MPT12 45,000 liters / 12,000 gallons

MPT tanks include the following standard features. Specifications may vary by model. For additional information, contact our Mega Sales Team.

Mega MPT tanks include an access ladder to the top of the tank. Our standard ladder features tread grip rungs for a sure-footed grip and hand rails at the top of the ladder for ease of access to the top of the tank.

The Mega braking system is D.O.T. approved.

The canvas sock for the down spout helps reduce water splash.

A constant force wheel on the shut-off valve ensures positive closure of the discharge pipe.



All clearance, stop, and tail lighting on Mega tanks are LED for long life and low maintenance. The lights are controlled by switches in the cab control.

Dual double-acting hydraulic cylinders allow the tank to be raised for filling operations.

Mega tanks are abrasive blasted prior to application of anti-corrosive primer. The exterior top coat is a standard white color.

One 3 inch diameter fill pipe with an auto-shutoff valve mounted at the bottom of the pipe enables ground level fill.

A float valve provides smooth, positive shut off when the tank is full.

A ten inch diameter discharge tube dispenses water from the front of the tank.

Standard glad hand connectors for hook-up to the transport vehicle are located above the frame arrangement to reduce the possibility of damage.

The Mega MPT includes a heavy duty 20,000 lb. axle with oil lubricated bearings and auto slack adjusters.

Interior tank rungs allow emergency exit from the tank.

A tool box is mounted on the frame.

The locking cap secures the fill port of the hydraulic oil reservoir. Lock not included.

Mud flaps on the rear light bar assembly and dual 11:00 x 22.50 tires are standard equipment on Mega portable tanks.


Mega protects your investment by providing a one-year warranty against defects in materials and workmanship. Extended warranties are available for purchase. Visit our Warranty Page for more information.

The pin handling tool is used for ground level installation and removal of support pins.

Quick disconnects on hydraulic lines allow for easy engine removal and storage.

A 6.5 hp engine and hydraulic pump are mounted on the base of the tank structure and includes a handle for easy removal and storage when the tank is locked in the raised position.

Side discharge mounts allow for after-market installation of side discharge piping.

Mega provides a complete set of technical manuals detailing installation, operation, maintenance, inspection and replacement parts. Additional manuals are available for purchase. Visit our Technical Manuals Page for more information.

The MPT hydraulic lift system is controlled with a two-lever control system powered by a 6.5 hp engine.

The weight and pulley system holds the chain out of the way when positioning a tanker under the discharge spout.

Your standard MPT tank can be configured with these optional features. Availability and specifications may vary by model. For additional information, contact our Mega Sales Team.

Additional sets of manuals are available for purchase. Mega manuals include a complete set of technical manuals detailing installation, operation, maintenance, inspection and replacement parts. Visit our Technical Manuals Page for more information.

The additional water fill pipe reduces fill time and integrates with the existing auto shutoff feature.

The ten inch diameter clean-out port allows external access to the interior of the tank for easy cleaning and debris removal.

An optional color for the tank exterior can be selected.

A custom graphic and text can be added to your tank. Your Mega sales representative can assist with the graphic design and will provide a proof for your review.

Mega tanks are abrasive blasted prior to the application of the interior coating. The epoxy lining is well suited for harsh, acidic, alkaline, and salty waters. Urethane lining is very effective in normal to salty waters. Coating data sheet and MSDS available upon request.

An optional ladder is mounted in the interior of the tank to provide access in addition to the supplied egress rungs.

The ladder cage provides added safety when accessing the top of the tank.

The discharge system includes a solar panel mounted on the tank. This charges the battery for the electric motor which powers the remote control, electrically actuated butterfly valve.

The side-discharge pipe allows water trucks to be positioned alongside the portable tank for filling. This feature is useful when the MPT is placed in a highway center median or an area with limited space.

The wye strainer is installed on the standard fill pipe to help prevent debris from entering the fill pipe valve.
