The following charts describe flow rates and spray duration configurations using our Mega spray heads in conjunction with our Mega M-3 and M-4B water pumps. If you have any questions please contact either Mega Parts Sales or the Mega Product Support Team.

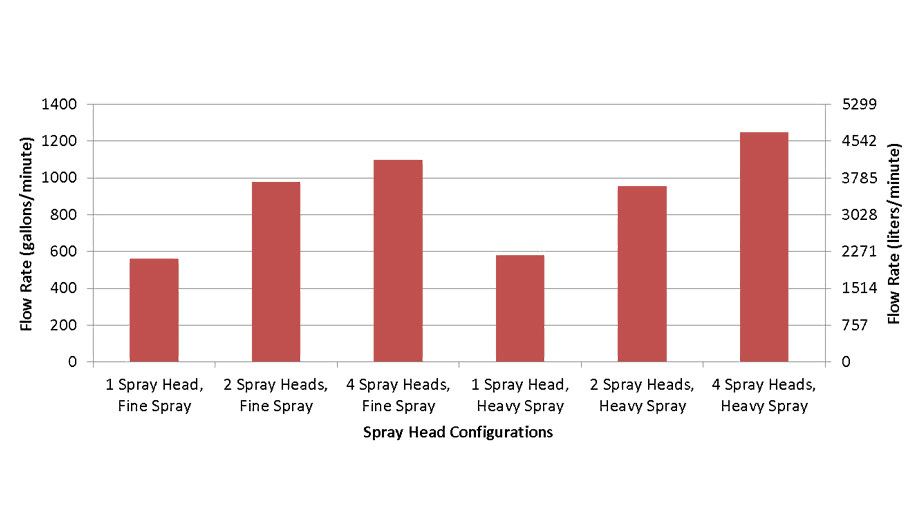

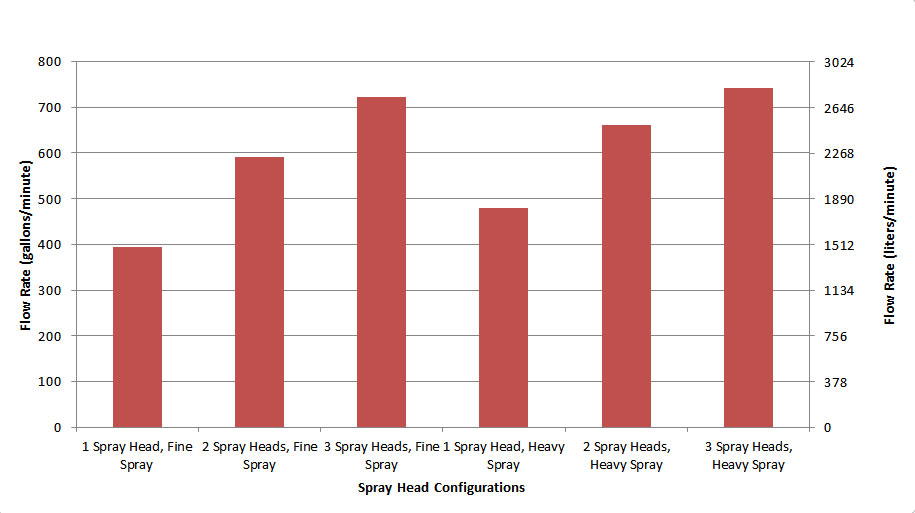

Total flow rates of different spray head configurations. The approximate total flow rates in gallons/minute (left vertical axis) and liters/minute (right vertical axis) of three possible spray head configurations. The “fine spray” opening is 1/4 inches in height, and the “heavy spray opening” setting is 3/8 inches in height. These flow rates were recorded on an MAC6 CAT730 with an M-3 Mega water pump.

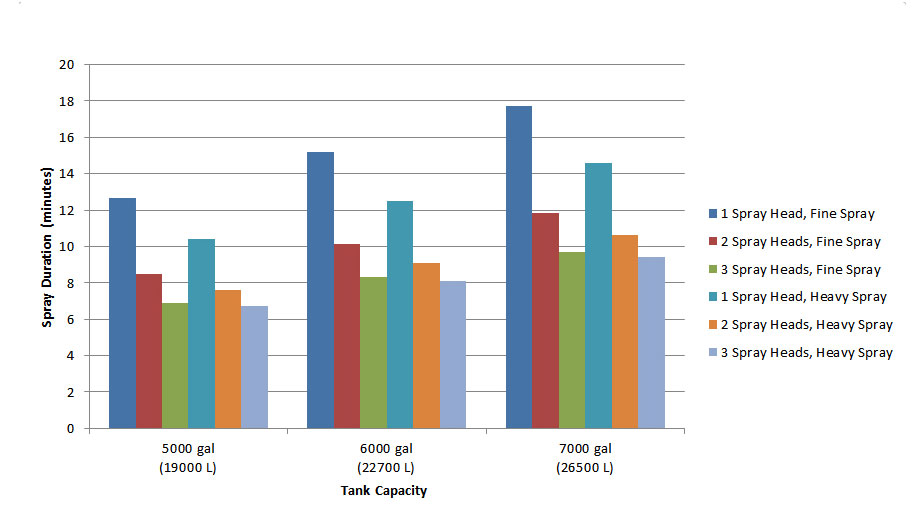

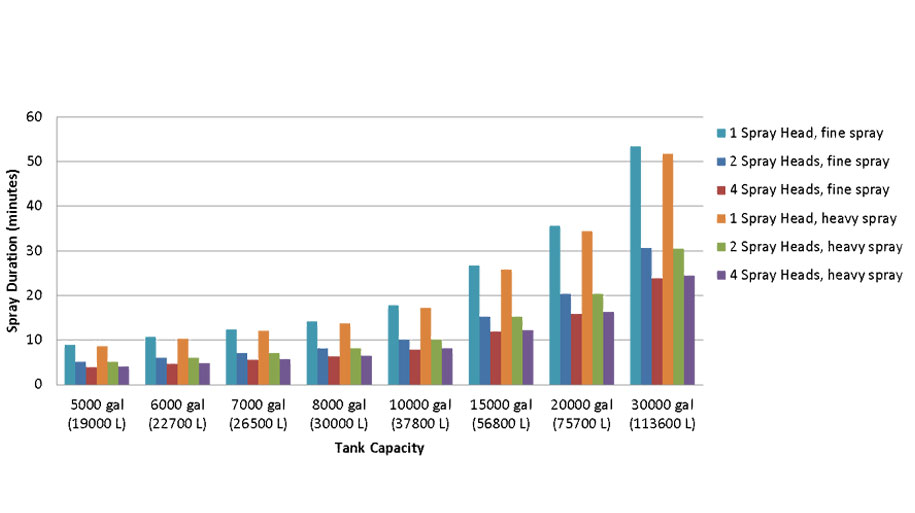

Estimated spray duration for various capacity tanks with four different spray head configurations. Spray duration in minutes is shown on the vertical axis. The “fine spray” opening is 1/4 inches in height, and the “heavy spray opening” setting is 3/8 inches in height. These flow rates were recorded on an MST8 CAT621K with an M-4B Mega water pump.
